Rechargeable Lithium Batteries 553450 3.7V 1100mAh 1200mAh 4.07wh Storage Lipo Battery Cell

Наименование марки:	RESKY
Номер модели:	LP553450
МОК:	10 шт.
цена:	Подлежит обсуждению
Подробная информация об упаковке:	Пакет в пузырьке с бумажной коробкой
Условия оплаты:	T/T, Western Union

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

CE, RoHS, MSDS, Un38.3, IEC62133

Документ:

Модель №:

LP553450

Nominal Capacity:

1100mAh

10 шт.

Жизненный цикл:

500 циклов

Гарантия:

12 месяцев

Доставка:

DHL, FedEx, TNT, по воздуху, по морю

Код ТН ВЭД:

8507600090

Поставка способности:

50000 штук/день

Описание продукта

Rechargeable Lithium Batteries 553450 3.7V 1100mAh 1200mAh 4.07wh Storage Lipo Battery Cell

Product Specifications

Attribute	Value
Model NO.	LP553450
Nominal Capacity	1100mAh
Weight	9g
MOQ	10PCS
Cycle Life	500cycles
Warranty	12months
Shipping	DHL, FedEx, TNT, by Air, by Sea
HS Code	8507600090

Technical Details

NO.	Items	Specifications
1	Batteries	3.7v 1100mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1100mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V ±0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 50±0.5mm (not including tabs) Width: 34±0.5mm Thickness: 5.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of 1 meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Polymer Lithium Battery Classification

By Structure:

Wound type: Uses the same winding process as liquid lithium-ion batteries to wind up the positive electrode, negative electrode and electrolyte membrane, wrapped with packaging aluminum foil.
Laminated type: Uses hot pressing process to press the positive electrode, negative electrode and electrolyte membrane together, wrapped with packaging aluminum foil.

By Electrolyte:

Gel polymer electrolyte: Adds additives to improve ion conductivity for room temperature use.
Solid polymer electrolyte: Polymer and salt mixture with low ion conductivity at room temperature, suitable for high temperature use.
Composite gel polymer: Conductive polymer as positive electrode material with 3x specific energy of standard lithium-ion batteries.

Key Advantages

High safety: Pure lithium material with Japanese protection board solution featuring overcharge, over-discharge, and short circuit protection.
Long cycle life: 500+ charge cycles with 85% capacity retention after 500 cycles.
Wide temperature range: Operates from -20°C to 60°C for extreme environment applications.
Lightweight design: Compact 5.5mm×34.5mm×52.2mm size ideal for space-constrained devices.

Applications

Wearable devices (Bluetooth headsets, smart watches)
Consumer electronics (portable speakers, mobile power supplies)
High-performance applications (drones, model toys)

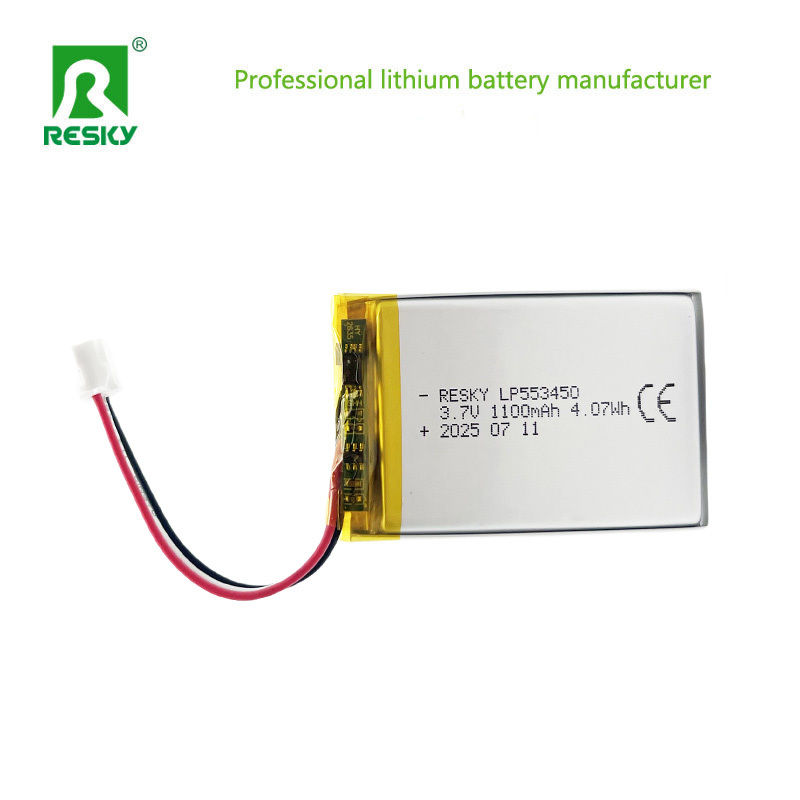

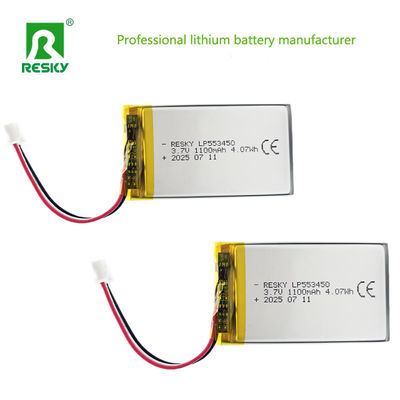

Product Images
