10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter

Наименование марки:	RESKY
Номер модели:	РСК-3620.4
МОК:	10 PCS
цена:	Подлежит обсуждению
Подробная информация об упаковке:	Стандартные экспортные пакеты/коробки ООН
Условия оплаты:	Western Union,T/T

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

CE,RoHS,MSDS,Un38.3

Электролит:

Ли ((Никомон) О2

Структура:

10s6p

Тип ячейки:

Аккумуляторные элементы Panasonic NCR18650B

Двигатель:

750 Вт

Напряжение отключения зарядки:

Поток зарядки:

Напряжение отключения:

27.5V

Непрерывный разряда тока:

Пиковый ток разряда:

734wh

Поставка способности:

500 шт/день

Выделить:

Panasonic Lithium Ion Battery Pack

10s6p Lithium Ion Battery Pack

Описание продукта

Product Description

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter

Specification:

Product name	36V 20.4Ah
Model	RSK-3620.4
Rated Capacity	20.4Ah
Nominal Voltage	36V
Over discharge protection voltage	30V±0.05V
Over charge protection voltage	42V±0.05V
AC Impedance New Cell Max.(mΩ)	≤100 mΩ
Maximum Continuous Charge Current	≤5A adjustment
Maximum Continuous Discharge Current	≤20A adjustment
Maximum Pulse discharge current	≤30A adjustment
Operation Temperature Range	Charge: 0~45°C,Discharge: -20~60°C
Storage Temperature Range	Less than 1 year: -20~25°C
Storage Temperature Range	Less than 3 months: -20~40°C
Storage Temperature Range	Less than 30 Days: -25°C~45°C
Storage Temperature Range	Less than 90 Days: -25°C~30°C
Weight	Approx 3.5kg
Cycle Characteristic	500 times

Various cell brand available:

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 0

Various cell type available:

1. Domestic ICR18650 battery cell(2600mAh, 2900mAh, 3400mAh, 3500mAh);

Domestic ICR21700 battery cell(4000mAh, 4500mAh, 5000mAh);

2. Panasonic: NCR18650F, NCR18650PF, NCR18650BE, NCR18650BD, NCR18650B, NCR18650BF, NCR18650GA;

3. Samsung cell available:

Samsung	INR1865035ET	3500	10A	3C
Samsung	INR1865025RM/RT	2500	20A	8C
Samsung	INR1865030Q/QM	3000	15A	5C
Samsung	INR2170050E	4800	10A	2C
Samsung	INR2170040T	4000	30A	7C
Samsung	INR2170050GB	5000	10A	2C
Samsung	INR2170050G	5000	10A	2C
Samsung	INR2170050S	5000	35A	7C

Various assembling way:

Various series or parrallels assembling way;

Voltage range for li-ion battery pack: 12V/24V/48V/60V/72V ect;

Voltage range for Lifepo4 battery pack: 12.8V/25.6V/51.2V/64V ect;

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 1

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 2

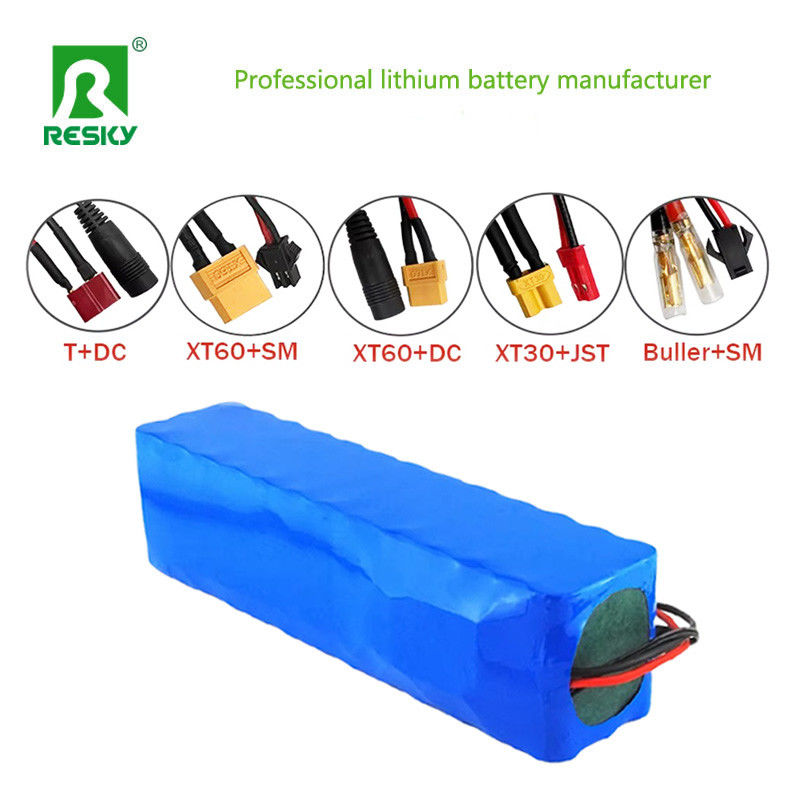

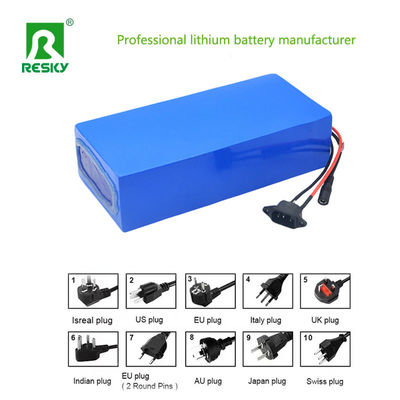

Input & output plug:

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 3

Various application:

1. Electric Bicycle replacement;

2. Electric scooter replacement;

3. Electric motorcycle;

4. Electric forklift;

5. Electric golf cart;

6. Electric tricycle;

7. Electric wheelchair;

8. Solar street LED light;

9. Storage UPS;

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 4

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 5

Why choose us?

1. We accept small quantity order or big quantity order;

2. We could accept any customized lithium battery pack orders;

3. We could accept orders with different requirements;

4. We guarantee 100% QC pass before delivery;

5. Fast production time, we have enough stock cells;

6. Fast solution confirmation, and quotation confirmation;

Factory pictures:

Battery cell warehouse:

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 6

Battery shell warehouse:

Automatic cylindrical battery cell sorting machine:

Assembled battery pack:

Completed battery in aging:

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 11

Workshop picture:

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 12

Battery Pictures:

10s6p 36v 20.4Ah Panasonic Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 13
